Handling Duplicate Messages

When developing message processing systems there can be scenarios where an identical message can be sent by an application more than once. In computer science if an operation is able to handle multiple instances of the same input without changing the result we say that it is idempotent. In Service Bus brokered messaging we are able to create idempotent messaging channels by leveraging the duplicate deletion functionality that is built into queues and topics.

The Enterprise Integration Patterns website provides a description of the Idempotent Receiver pattern here.



Duplicate message detection in queues and topics is based on the MessageId property of the messages that are sent by the sending application and a time window that is set on the queue or topic. When a message is created using one of the static CreateMessage methods the string value of a new GUID will be assigned to the MessageId property.

The following code will create 10 new messages and output their MessageId values.



for (int i = 0; i <= 9; i++)

{

    // Create a test message.

    BrokeredMessage testMsg = new BrokeredMessage ("Test");



    // Output the message ID

    Console.WriteLine("Message {0} has MessageId {1}", i, testMsg.MessageId);

}

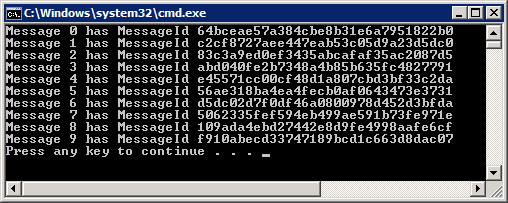

The output from the code is shown below.

Detecting duplicate messages based on the default message ID can be useful in scenarios where an application sending messages to a queue or topic needs to ensure that exactly one message is delivered.

Consider the following code.



try

{

    // Send a message to a queue.

    sender.Send(msg);



}

catch (TimeoutException ex)

{

    // Has the message been sent?

}





If the message is sent to the queue and a timeout exception is thrown there may be no way for the sending application to know that the message has been sent successfully. If the sending application chooses to resend the message it can ensure at-least-once delivery. If the sending application chooses not to resend the message it can ensure at-most-once delivery. If the queue or topic that the message is being sent to is configured to detect duplicate messages the client can retry sending the message and the queue or topic will ignore any duplicates. This will ensure exactly-once delivery of the message.

In some scenarios message duplication may occur before the application places the message on the queue or topic. If a web service is called by a client places a message on the queue there is a chance that the client may make two calls to the service if a timeout exception occurs. As the two messages created in the service will have different message IDs the duplicate detection logic will not detect the second message as a duplicate. In order for duplicate detection to work in these scenarios we must replace the default message ID with an identifier that is linked to the content of the messages we are sending. The next scenario will explore how this can be implemented.
